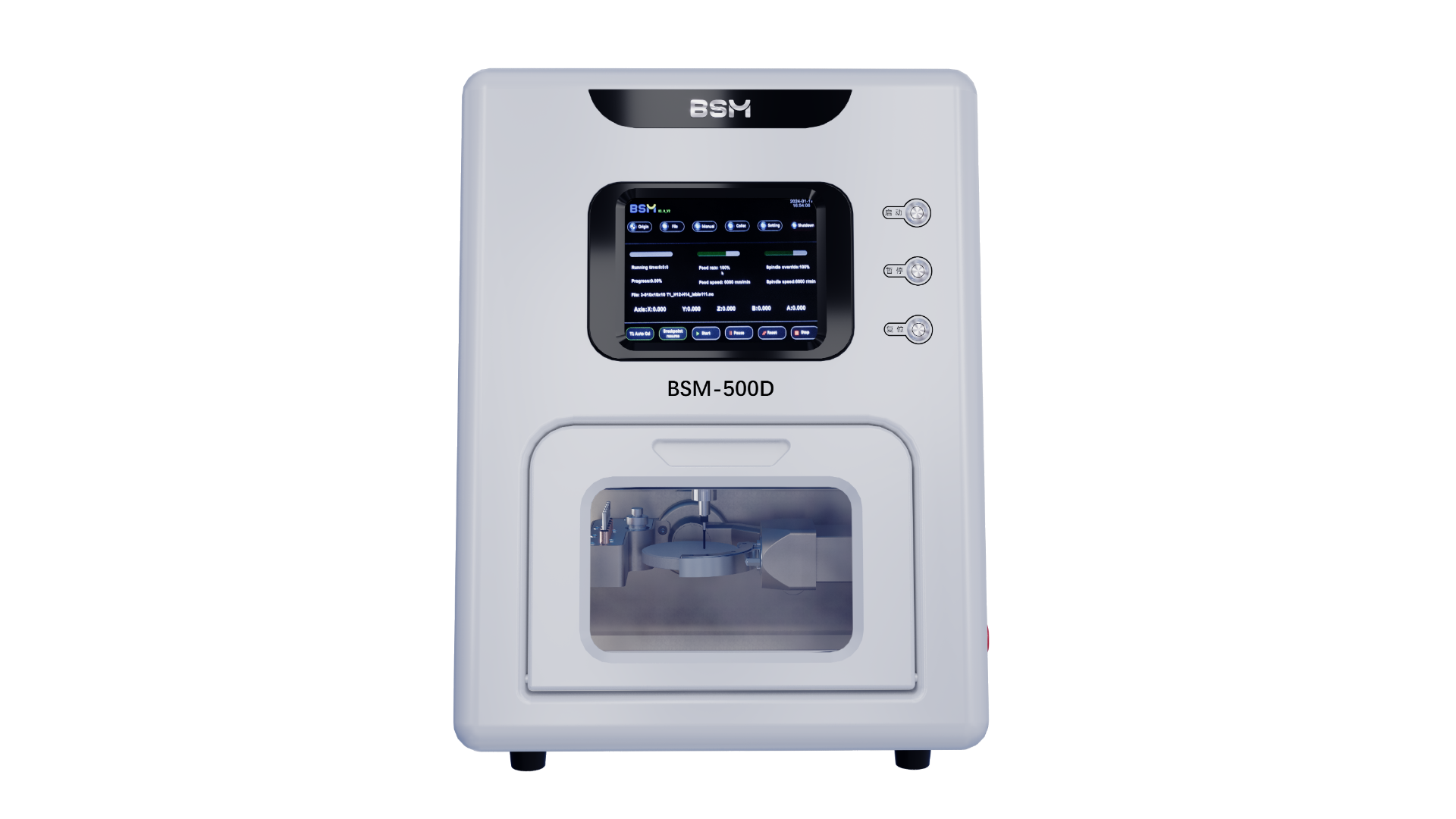

BSM-500D, with strong & reliable gantry structure design and 5-axis simultaneous linkage, features excellent reliability, intelligent processing, efficient and precise milli1g at 5um milling accuracy. With automatic working-suspension function in the occurrence of accidental door opening during processing, it guards the safety of the operator to avoid physical injury. Built-in working status indication light provides the intelligent monitoring of the milling operation. Equipped with a compact design but powerful spindle from Germany, it is an excellent choice for not only dental labs but also charitable practices.
 Precise | – Digital servo system with high resolution – Milling accuracy & repetition accuracy ±0.005mm |
 Intelligent | – Automatic tool changer – Power-off protection & break-point resume – Easy operation with intuitive LCD touch screen – Automatic working-suspension function – Intelligent working status indication light |
 Reliable | – Heavy industrial quality and aerometal structure – The gantry structure and thermal expansion symmetric design ensure excellent stability – High-frequency integrated ionizer neutralizes the electrostatic charge of chips(PMMA/plastics) |
 Efficient | – Powerful spindle with speed up to 60000RPM – 1/3 holder: boosts disc production by 20% – Milling speed: Coping:11 mins(Zirconia), 5 mins(Wax) Crown:16 mins(Zirconia), 6 mins(Wax) Frame:45 mins(PMMA/PEEK) – *Above data were obtained based on the BSM-500D milling of Aconia HT+ 14mm. |
| Dimension(W*D*H) | 480mm*700mm*645mm |
| Weight | 90kg |
| Fields of application | Dry milling |
| Number of Axis | 5 |
| Cooling System | Air cooling spindle |
| Repetition accuracy | ±0.005mm |
| Spindle Speed | Up to 60000 RPM |
| Touch screen control | 8”LCD Touch Screen |
| Built-in burs | 6 |
| Automatic tool changer | Positive |
| Voltage/Power | 220V/1KW |
