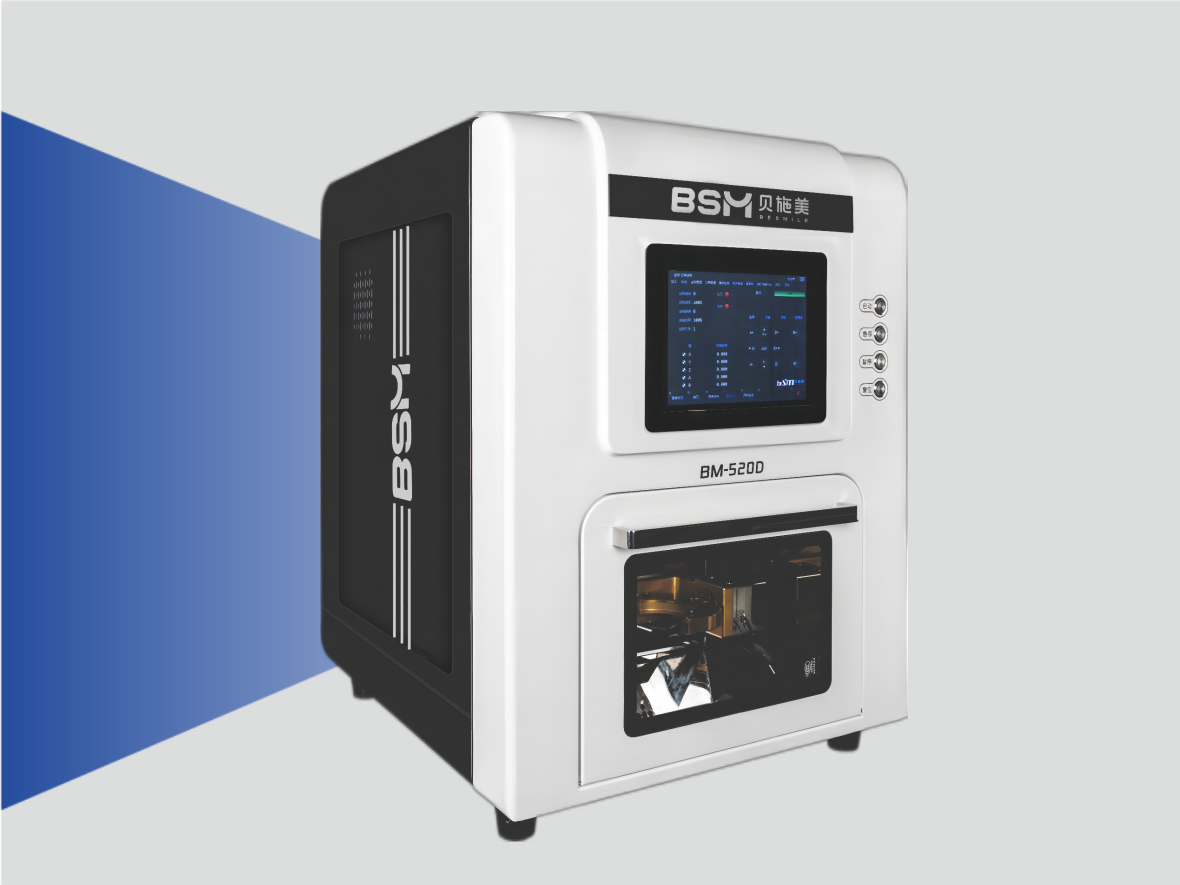

BSM-520D Milling Machine
BSM-520D is a 5-axis dry-milling machine for dental CAD/CAM with a wide range of materials, high accuracy, and excellent compatibility. Ideal for bridges, frames, splints, abutments, and zirconia perforation. With a premium spindle, smart CAM nesting, and intelligent touch screen, it delivers wider material capabilities and higher efficiency.
Get a Quote →Key Features
B axis wide rotation range supports crown, bridge, inlay, onlay, abutment, and veneer indications.
Smart CAM nesting, 9.7″ integrated touch screen, 4-tool automatic changer with haptic detection and tool breakage monitoring.
1/3 holder increases production 20% per block. 2-second block insertion and dust-proof design ensures long lifespan.
Premium 60,000 RPM spindle with heavy industrial aerometal structure. Thermal expansion symmetric gantry ensures accuracy stability.
±0.005mm repetition accuracy, ±0.01mm per-axis installation accuracy, 90° vertical processing. Zirconia posterior crown ≈17 min, 3-unit crown bridge ≈24 min (Aconia HT+ 14mm).
Technical Specifications
| Specification | Details |
|---|---|
| Dimension (W×D×H) | 480 × 700 × 645 mm |
| Weight | 90 kg |
| Fields of Application | Dry milling |
| Number of Axes | 5 |
| Cooling System | Air cooling spindle |
| Repetition Accuracy | ±0.005mm |
| Spindle Speed | Up to 60,000 RPM |
| Touch Screen Control | 8″ LCD Touch Screen |
| Built-in Burs | 6 |
| Automatic Tool Changer | Positive |
| Voltage / Power | 220V / 1KW |
