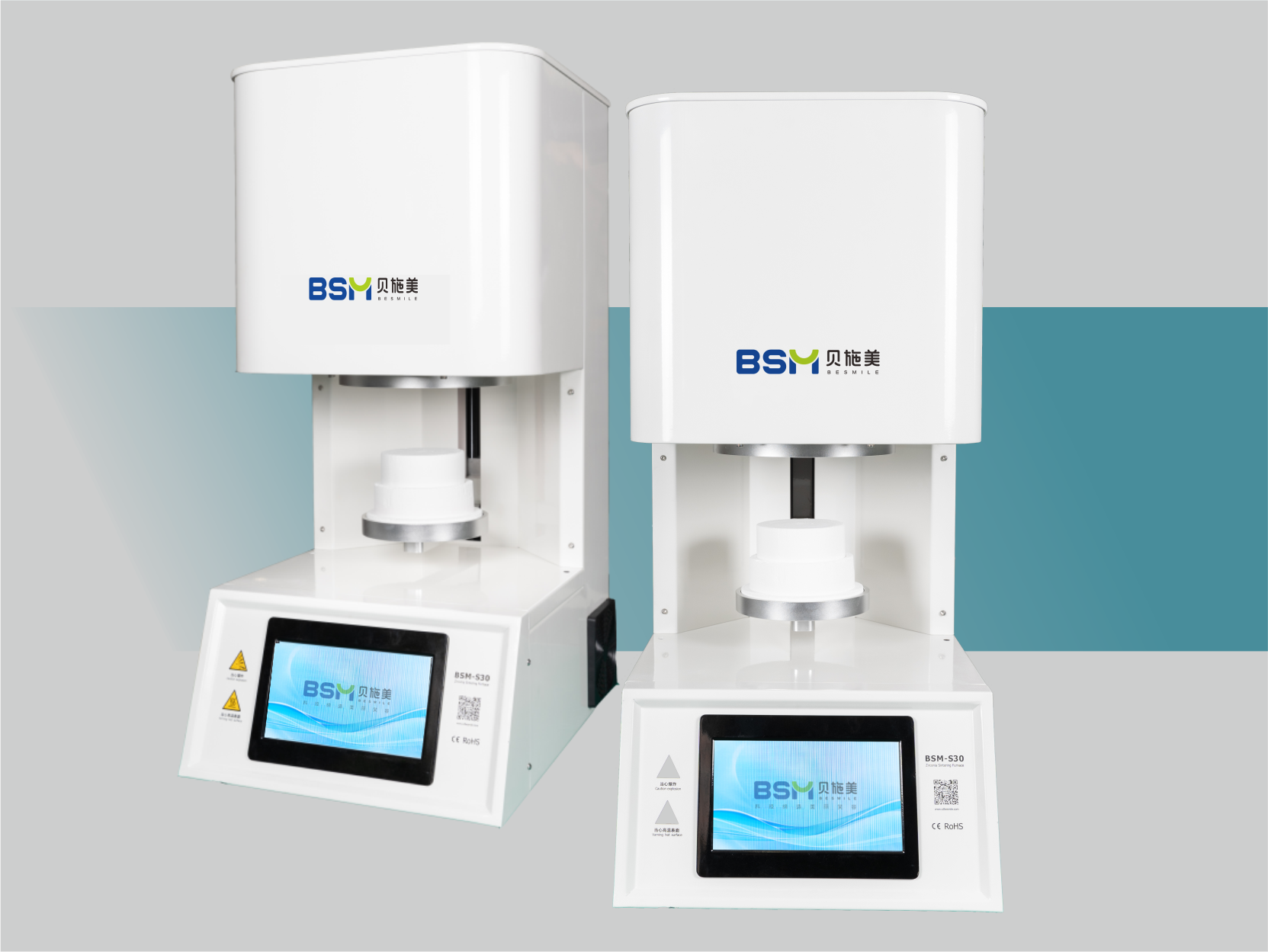

BSM-S30 zirconium sintering furnace has been designed for processing zirconia restorations with a high degree of stability and efficiency.It adopts high-purity heating elements and homogeneous temperature distribution technology, providing reliable sintering output for single restorations, frameworks and bridges. The“Sandwich”thermal insulation design guarantees precise temperature control throughout the whole sintering process. The clear and intuitive user interface gives users a comfortable operating experience.
 Large capacity | – Approx. 80 single crowns could be sintered at the same time |
 Pollution free | – High-purity silicon molybdenum heating elements |
 Precise temp. control | – Type B thermocouple – PID intelligent temperature control – High-performance insulation materials, excellent heating preservation – High-performance motors, steady operation |
 Easy to use | – 7”true color touch screen – 3 built-in sintering programs – 100 customized sintering program capacity |
| Dimension(W.D.H) | 4000*590*870mm |
| Sintering space | Φ110mm*90mm |
| Number of sintering trays | 4 |
| Power supply | High purity silicon molybdenum |
| Working temperature | ＜1600℃ |
| Operation | 7”color touch screen |
| Weight | 85kg |
| Sensor | High precision type-B thermocouple |
| Power supply | 220V/50Hz |
| Rated power | 3KW |
| Heating rate | ≤10°C/min |
| Heating type | Standard |
